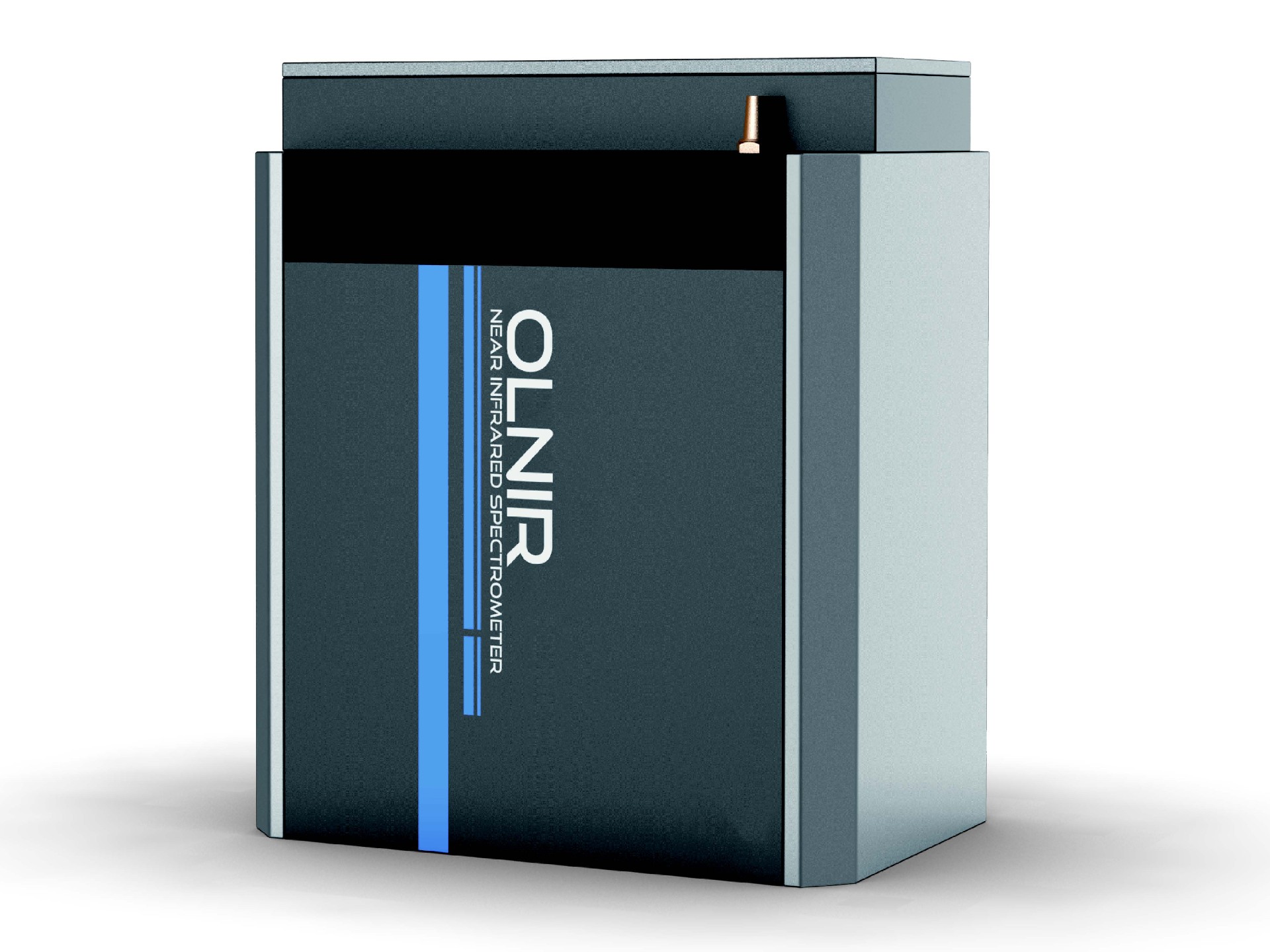

Online NIR spectrometer OLNIR-1700LF

Introduction:

OLNIR-1700LF is a large spot online near-infrared spectrometer independently developed by Diqiang Technology. When testing materials, it can irradiate a larger sample area, resulting in better representativeness of sampling and can be used for

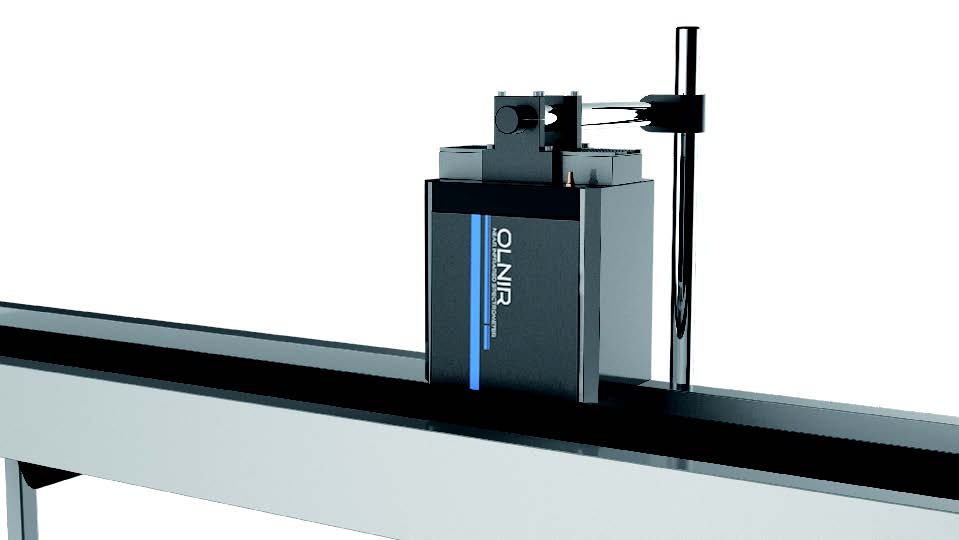

Online detection of large particles or non-uniform samples. Instrument structure: The instrument design has a compact structure, is easy to install, and has no side lines, making it a true in-situ analysis. The instrument passes through

The software automatically controls the operation, achieving a fully automatic operation mode without user intervention. The complete system is designed to prevent dust and meet the strict safety requirements of the factory.

Features:

1. The instrument adopts a linear gradient filter based on the Fabry Perot interference principle as the spectral element, without any moving parts, fully adapted to the harsh vibration environment of online production.

2. The instrument has fast analysis speed and can scan up to 100 times per second online, enabling quick prediction of results and achieving true online real-time detection.

3. Fully automatic operation, 24-hour unmanned mode. A user-friendly software interface that only requires simple training and no professional requirements. The instrument can automatically adjust according to preset settings

The program workflow automatically scans spectra, calls models, predicts results, and outputs signals.

4. Provide analog output interfaces, wired network interfaces, and wireless network interfaces.

5. It can be achieved through Modbus RTU Modbus TCP、Profinet、Profibus、 Simulate multiple transmission protocols for data exchange.

6. Measure the height (height refers to the distance from the near-infrared spectrometer lens to the surface of the material) by 150mm ± 50mm.

7. The illuminated area of the spot is 100mm.

8. It has remote viewing, management, and operation functions. When connected to the internet, the instrument can be viewed, managed, and operated on a mobile phone or other PC.

9. Equipped with cloud platform networked management interface, capable of network upgrade.

10. Real time monitoring of online material conditions, ensuring that the spectrometer works when there is material and stops working when there is no material.

11. Real time monitoring of material temperature. If the material temperature is too high, stop the detection.

12. Forming an air curtain in front of the sample and lens can effectively prevent dust from adsorbing in front of the lens.

Product advantages:

1. Low one-time investment, high cost-effectiveness, and long-term economic returns;

2. The entire machine is designed with dust prevention, ensuring safety and reliability;

3. Fast detection, scanning up to 100 times per second, and real-time prediction of multi indicator results;

4. Ultra long service life, with a light source lifespan exceeding 10000 hours;

5. Automatically output standard industrial signal 4-20mA signal or Modbus protocol.

Detection objects and indicators:

1. Online quality testing of agricultural products (flour, soybeans, corn, wheat, tobacco, etc.);

2. Quality monitoring of feed or raw materials;

3. Quality monitoring of oil processing raw materials or products (rapeseed, soybean meal, rapeseed meal, etc.);

4. Analysis of chemical raw materials;

5. Quality testing of pharmaceutical raw materials;

6. Other online requirements.
