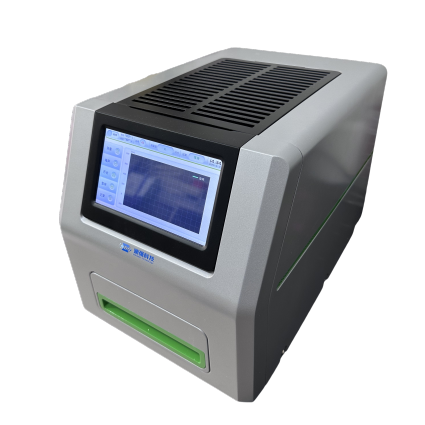

PSL 360 Irradiation Food/Traditional Chinese Medicine Detector

Professional equipment for detecting irradiated food/traditional Chinese medicine

PSL 360

Photoluminescent irradiation traditional Chinese medicine detector

Single machine can also be detected! Higher sensitivity! Lower background!

EU EN 13751:2009 Food Detecting irradiated food using Photoluminescence method

Compliant with the National Standard GB23748-2016, the first method of identification and screening of irradiated food.

PSL360 is a newly developed PSL (photoluminescence) system used for inspecting irradiated traditional Chinese medicine according to the 2025 edition of the Chinese Pharmacopoeia 9261. Compact design and newly developed operating software, simple operation and excellent performance.

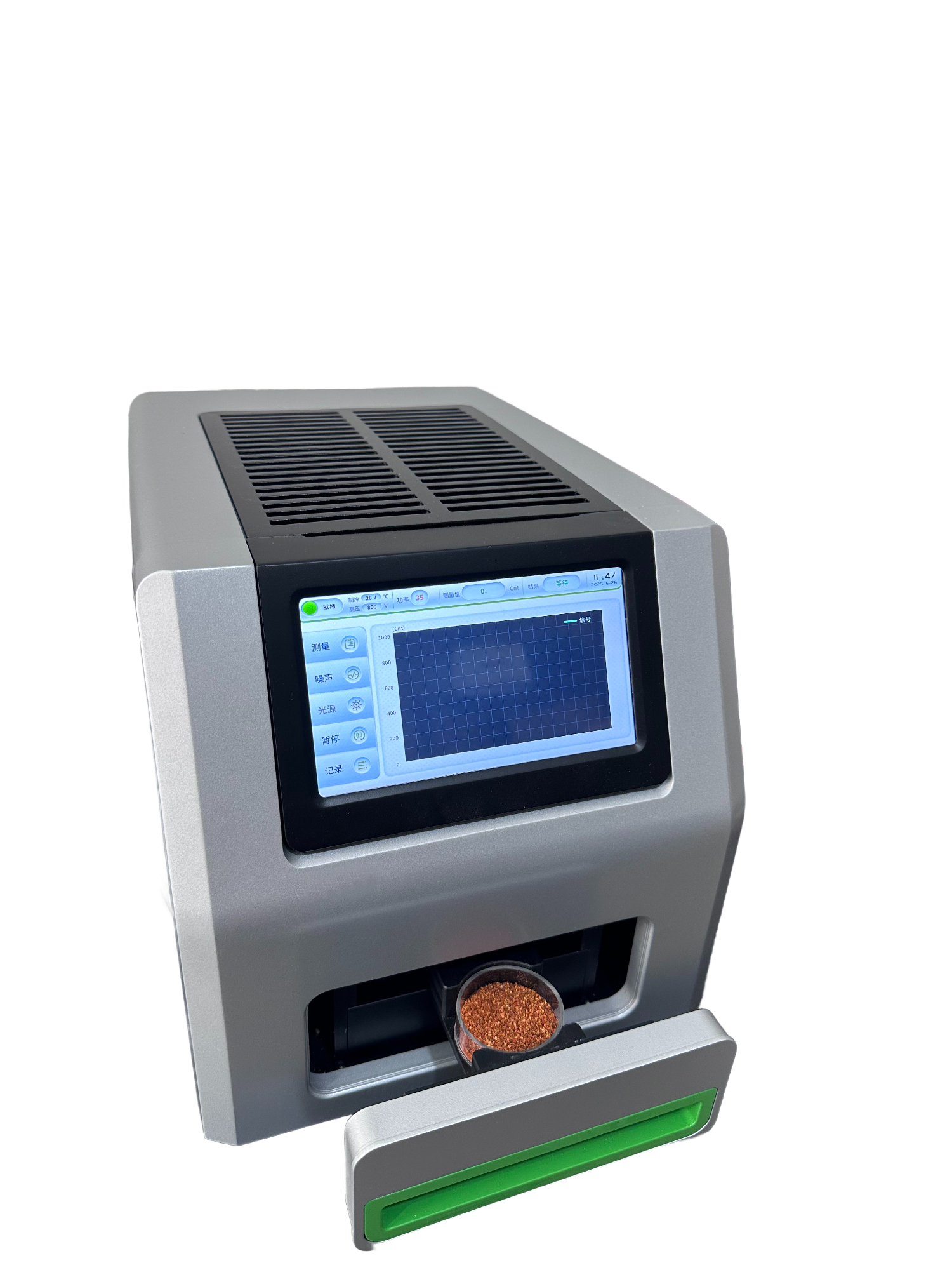

The PSL360 drawer is designed for a common culture dish with a diameter of 50 millimeters and a height of 20 millimeters. Its small size and weight only require a very small desktop space, and PSL360 can be used as a portable on-site inspection for irradiated food.

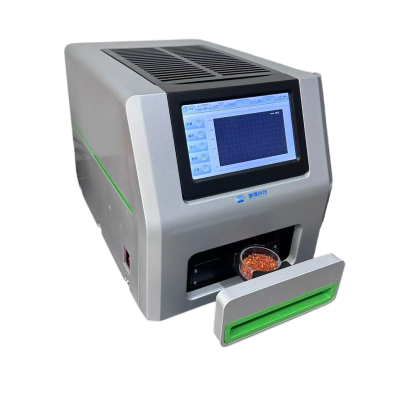

The fully automatic drawer design is easy to operate, and specific wavelength filters can completely filter out the impact of stray light on detection.

Technical specifications:

The touch screen interface enables human-computer interaction, and the device can run independently or be connected to a computer;

Excitation infrared excitation and adjustable excitation power (maximum 45 mW/cm²);

Detection unit photoelectric sensor (300-650nm);

Typical value of dark count rate is 20CPS, maximum value is 50CPS

Detector cooling is controlled by semiconductor cooling to ensure the stability of continuous detection;

Stable high voltage supply of 800V, high voltage stability ≤ 1%;

Detecting filter broadband (standard), infrared blocking (BG39);

Sample drawer fully automatic drawer, integrated design, easy to clean;

The software Chinese system is designed for routine quality control and can set three levels of user levels;

Data output USB interface, supporting remote operation;

Data storage should store at least 1000 measurement records;

Measurement method: Photon counting unit level ≥ 10⁷;

Collection frequency 10 times per second;
